GT WELDING TABLE
High quality, durability, multifunctionality.
Technical specifications
The welding table top is perfectly flat and rigid. Flatness per 1 running metre is up to 0.6 mm, such precision allows welding perfectly flat products on the table without defects.
Holes D16 mm with a pitch of 50x50 mm
Engraving coordinate grid 50x50 mm
Steel 09G2S or ST3 - thickness from 4 to 12 mm on request
Holes D16 mm with a pitch of 50x50 mm
Engraving coordinate grid 50x50 mm
Steel 09G2S or ST3 - thickness from 4 to 12 mm on request
One size fits all

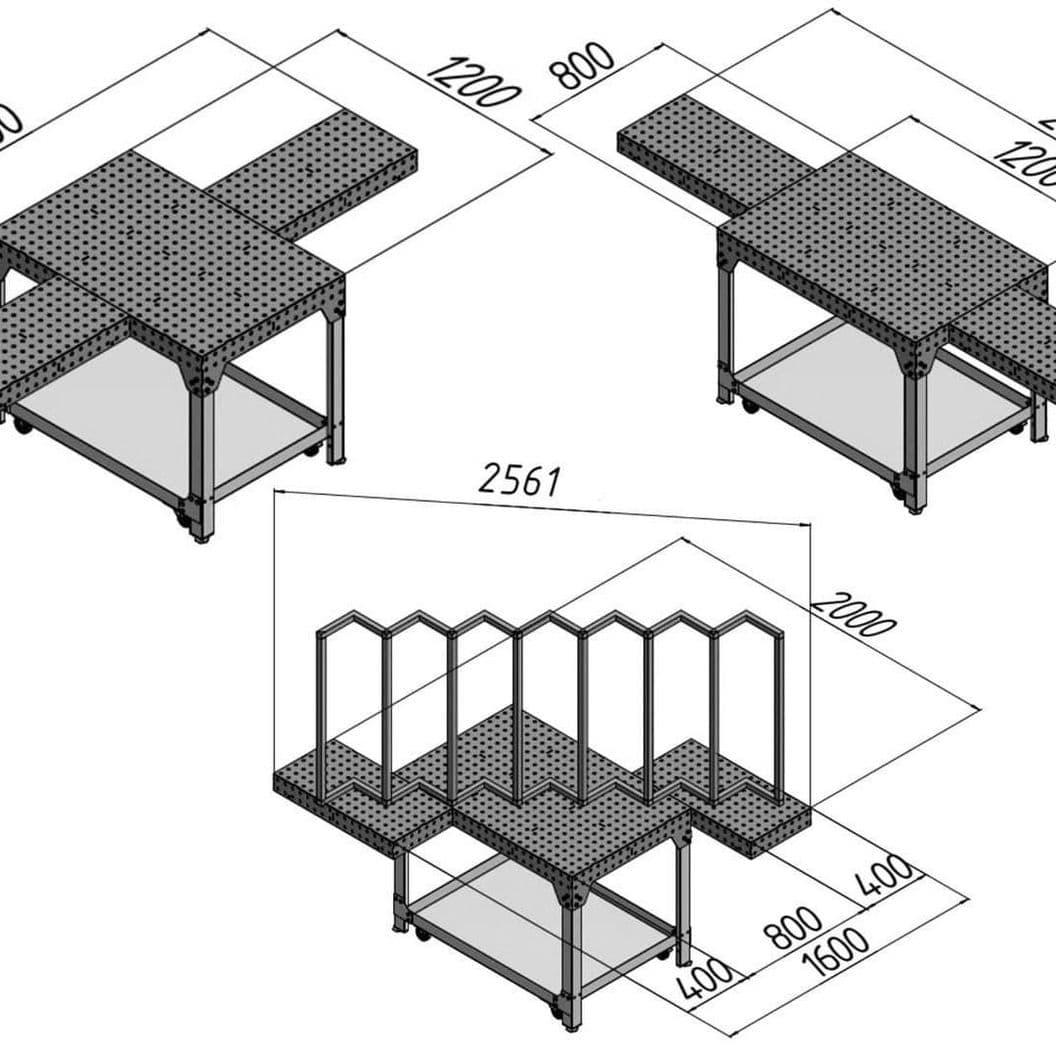

Side extensions can be installed beyond any edge, thereby increasing the overall size of the work surface in all directions.
Unique design
The design is thought out to the smallest detail and meets the highest customer requirements. In addition to beauty, you get a truly convenient tool.

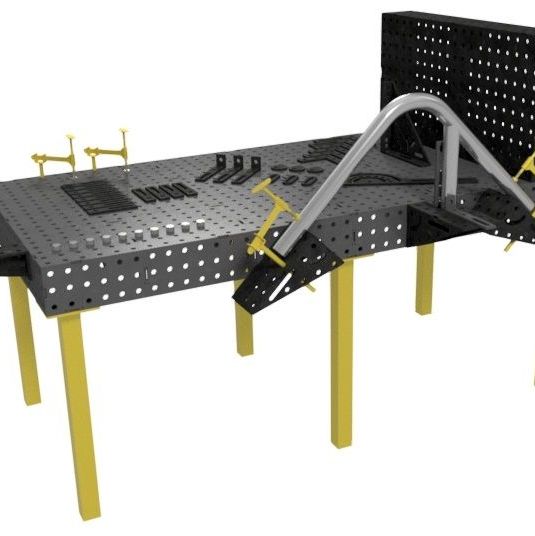

Accessories

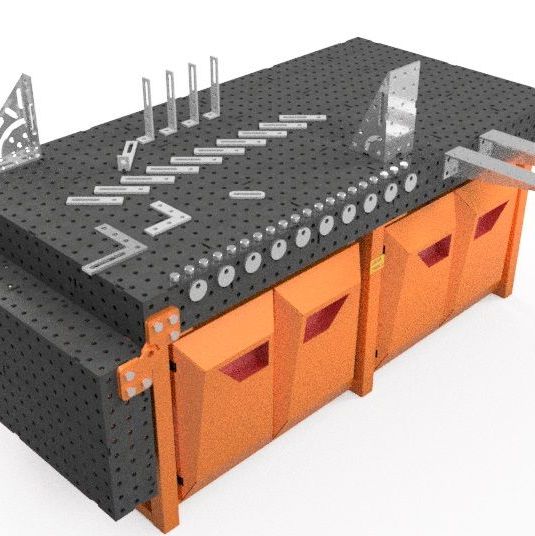

Large selection of additional equipment for welding work on the table. Clamps, stops, clamps, expanders, rotating screen and much more.
Sale

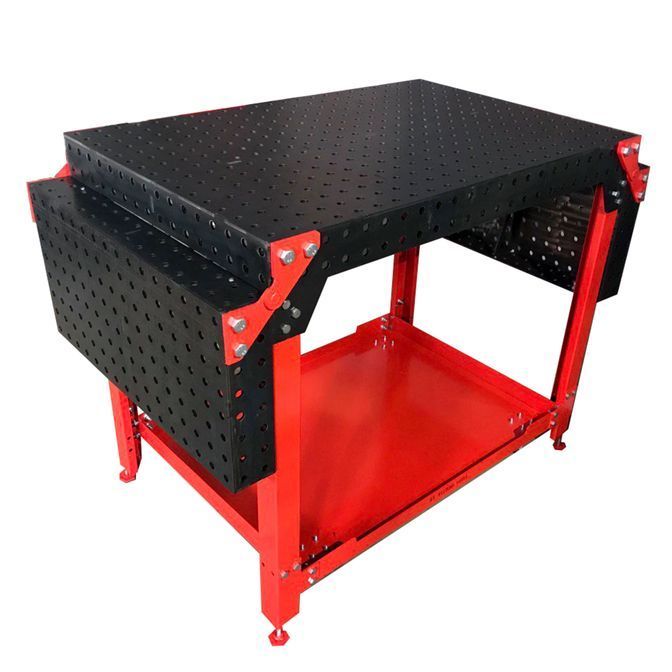

Welding table
Welding table made of 09G2S steel with a thickness of 4 to 12 mm

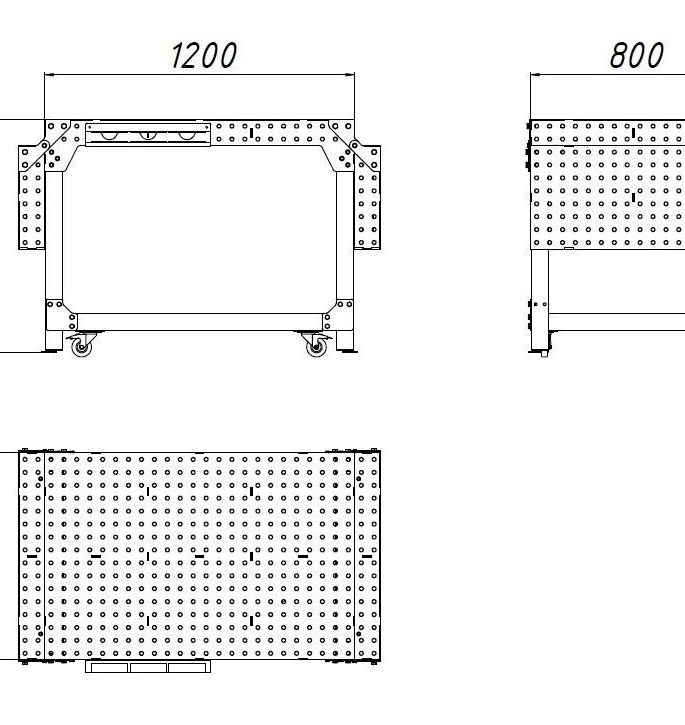

Main tabletop size 1200x800 (or upon agreement)
Folding extension size 400x800 (or upon agreement)
Pitch of holes 50 mm with a diameter of D16 mm
Stiffeners inside the table
Height-adjustable legs
Industrial wheels with a stopper
Powder paint (color upon agreement)
Main tabletop size 1200x800 (or upon agreement)
Folding extension size 400x800 (or upon agreement)
Pitch of holes 50 mm with a diameter of D16 mm
Stiffeners inside the table
Height-adjustable legs
Industrial wheels with a stopper
Powder paint (color upon agreement)
62000 ₽
92000 ₽
Sale

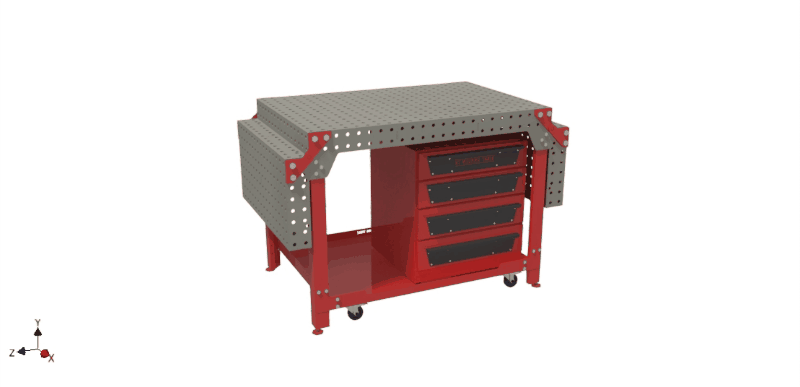

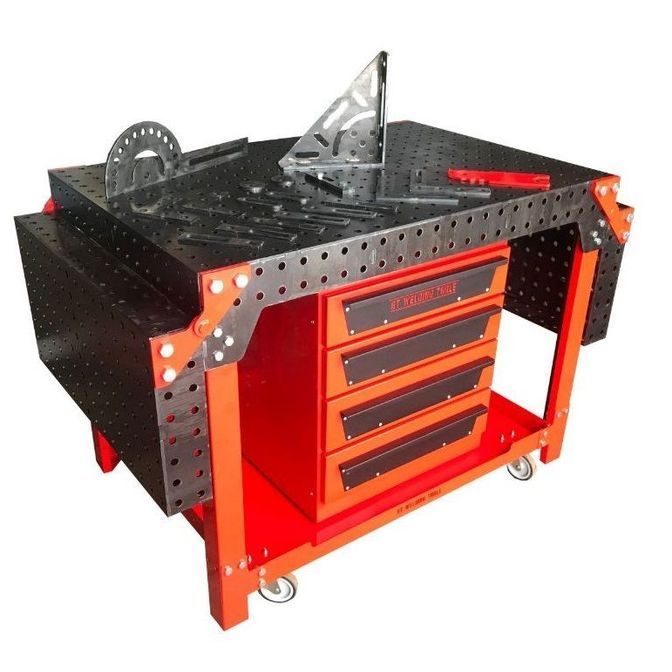

Welding table
Welding table made of 09G2S steel with a thickness of 4 to 12 mm
Main tabletop size 1200x800 (or upon agreement)
Folding extension size 400x800 (or upon agreement)
Pitch of holes 50 mm with a diameter of D16 mm
Stiffeners inside the table
Basic set of accessories (equipment)
Height-adjustable legs
Industrial wheels with a stopper
Powder painting (color upon agreement)

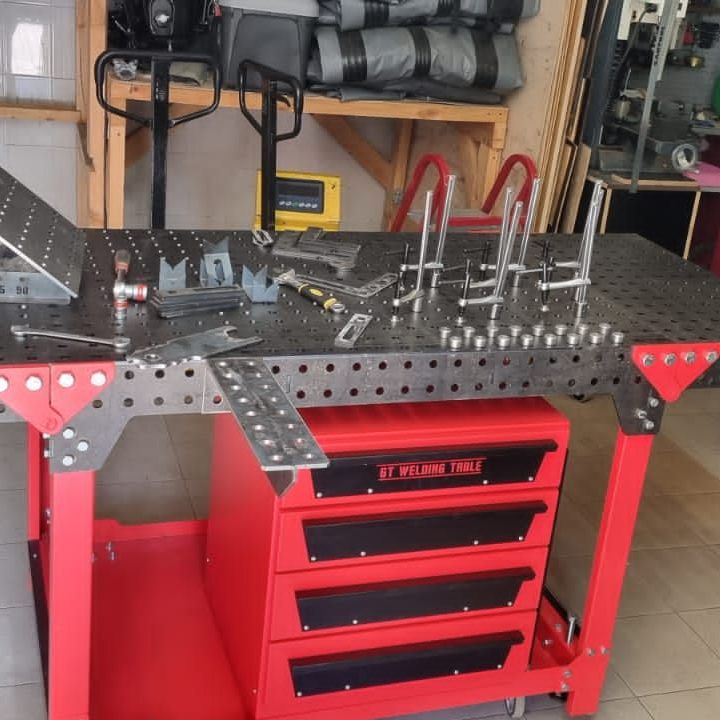

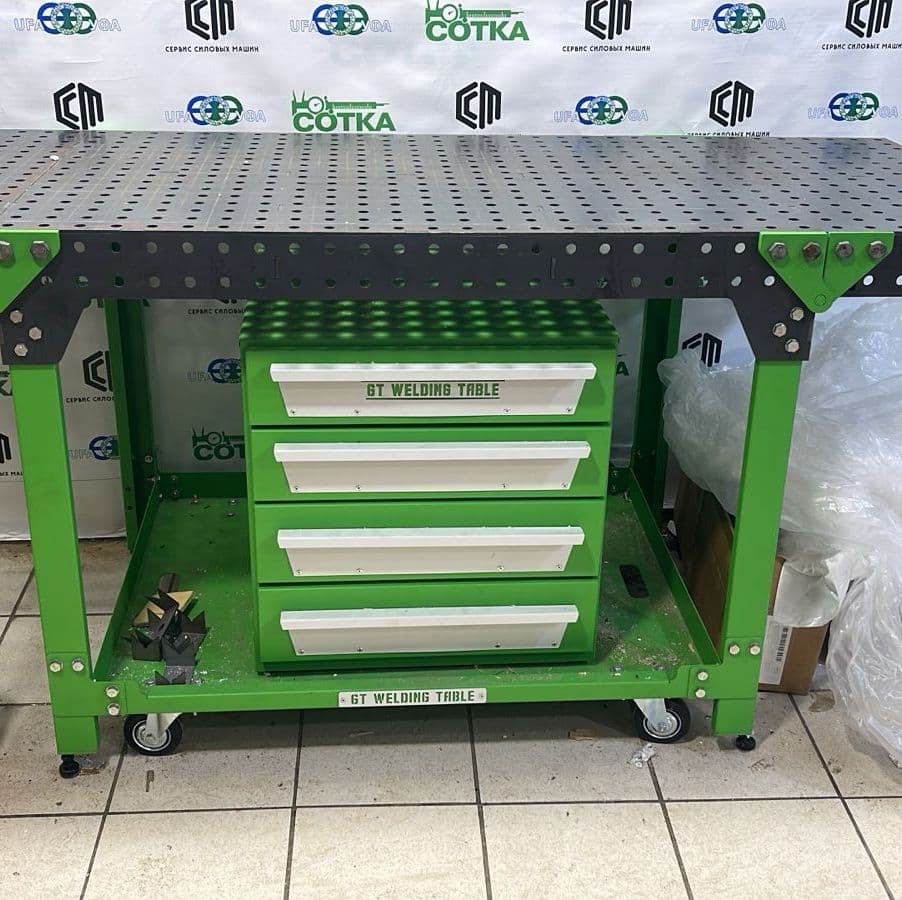

Tool cabinet - 4 pull-out drawers with a closer, IP54 protection (Color upon agreement)
Main tabletop size 1200x800 (or upon agreement)
Folding extension size 400x800 (or upon agreement)
Pitch of holes 50 mm with a diameter of D16 mm
Stiffeners inside the table
Basic set of accessories (equipment)
Height-adjustable legs
Industrial wheels with a stopper
Powder painting (color upon agreement)
Tool cabinet - 4 pull-out drawers with a closer, IP54 protection (Color upon agreement)
92000 ₽
120000 ₽
Sale

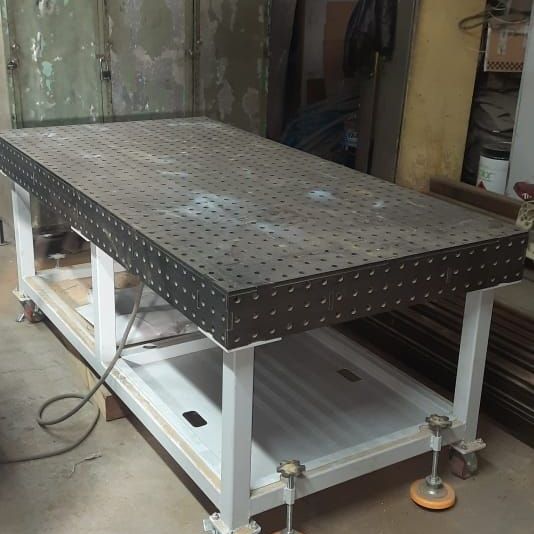

Welding table
Welding table made of 09G2S steel with a thickness of 4 to 12 mm
Main tabletop size 2000x1000 (or by agreement)
Pitch of holes 50 mm with a diameter of D16 mm
Stiffeners inside the table
Height-adjustable legs
Industrial wheels with a stopper
Powder painting (color by agreement)
Main tabletop size 2000x1000 (or by agreement)
Pitch of holes 50 mm with a diameter of D16 mm
Stiffeners inside the table
Height-adjustable legs
Industrial wheels with a stopper
Powder painting (color by agreement)
92000 ₽
120000 ₽
Welding work will become more convenient, faster and better
By using welding table accessories, you will save a lot of time when positioning parts on the table.
Frequently asked questions
What thickness of steel should I choose for my welding table?
The thicker, the better. But! If the question is about optimal quality and price, then you need to look at the intensity of welding work on the table.
4 mm steel is suitable for assembly work on the table, with a minimum amount of welding.
6 mm steel for more intensive welding, but still not industrial volumes.
8 mm steel and thicker, for welders working in 2 shifts on one table.
4 mm steel is suitable for assembly work on the table, with a minimum amount of welding.
6 mm steel for more intensive welding, but still not industrial volumes.
8 mm steel and thicker, for welders working in 2 shifts on one table.
What grade of steel do you have? 09G2S or ST3
4 mm and 6 mm - 09G2S
8 mm and thicker - ST3
8 mm and thicker - ST3
Is it possible to change the size of the welding table top?
We will make any size to order according to your wishes.
What is the load on the welding table?
Depending on the thickness of the tabletop:
4 mm = up to 1000 kg.
6 mm = up to 1500 kg.
8 mm = up to 2000 kg.
All figures are relative, in reality the table will withstand more.
4 mm = up to 1000 kg.
6 mm = up to 1500 kg.
8 mm = up to 2000 kg.
All figures are relative, in reality the table will withstand more.
What is the load on the welding table when moving?
On top of the table you can transport a structure weighing up to 250 kg. But if your work requires a greater load, then we will install other wheels, and the load will be up to 1000 kg.
